Main references internal combustion CHP:

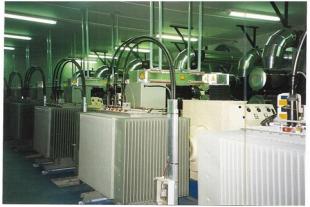

Thermal power of 8000 KVA on domestic fuel:
Centrales thermiques de 8000 kVA
Mission:
• Completion of the feasibility study
• Completion of administrative records
• Assistance in negotiations with EDF
• Completion of specifications
• Consultation with providers
• Assistance in negotiations with suppliers
Key figures:
• Power: 8000 kVA
• Realization: 1995
• Engines: 6 Cummins engines KTTA 50 G2
• Completion of the feasibility study
• Completion of administrative records
• Assistance in negotiations with EDF
• Completion of specifications
• Consultation with providers
• Assistance in negotiations with suppliers
Key figures:
• Power: 8000 kVA
• Realization: 1995
• Engines: 6 Cummins engines KTTA 50 G2

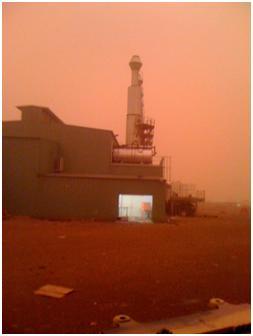

Thermal power of 30 000 kVA heavy fuel Akjoujt Mauritania
Client: MCM
Master builder: APS / Delmas Export
Mission:
• Completion of the feasibility study for recovery steam boilers
• Completion of specifications
• Consultation with providers
• Negotiations with suppliers
Client: MCM
Master builder: APS / Delmas Export
Mission:
• Completion of the feasibility study for recovery steam boilers
• Completion of specifications
• Consultation with providers
• Negotiations with suppliers
Key figures:
• Power: 6 x 5 MW
• Realization: 2009
• Engine: Caterpillar MAK 12CM32
• Power: 6 x 5 MW
• Realization: 2009
• Engine: Caterpillar MAK 12CM32
Main references gas engine - CHP (Combined Heat and Power)
CHP (Combined Heat and Power) Canson - Annonay (07)
Mission:
• Feasibility study for batch thermal (steam generator, Connection)
• Project study
• Procurement
• Monitoring of implementation
• Support trials
Key figures:
• 4 engines of 2000 kW Jenbacher J616
• Steam boiler Babcock Wanson fire tubes
• Year: 1997
CHP (Combined Heat and Power) Canson - Annonay (07)
Mission:
• Feasibility study for batch thermal (steam generator, Connection)
• Project study
• Procurement
• Monitoring of implementation
• Support trials
Key figures:
• 4 engines of 2000 kW Jenbacher J616
• Steam boiler Babcock Wanson fire tubes
• Year: 1997

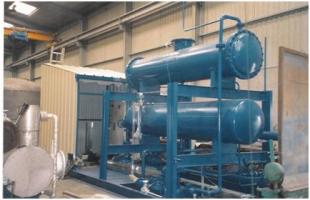

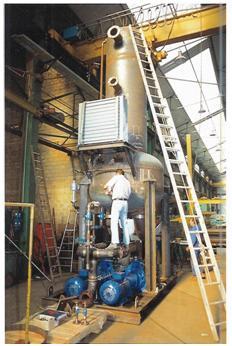

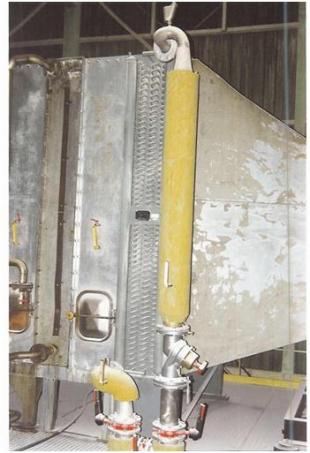

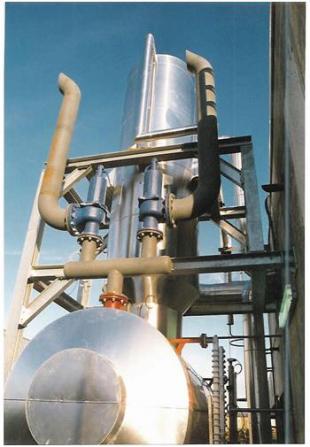

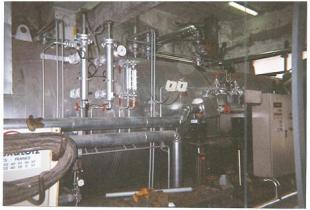

Recovery steam generator
CHP (Combined Heat and Power) Cran Gevrier (74)
Mission:
• Feasibility study for batch thermal (steam generator, connection)
• Project study
• Procurement
• Monitoring of implementation
• Support trials
Key figures:
• 4 engines of 2000 kW Jenbacher J616
• steam boiler water tubes Leroux and Lotz
• Year: 1997
CHP (Combined Heat and Power) Whey - Verdun (55)
Mission:
• Feasibility study for batch thermal (steam generator, connection)
• Project study
• Change process (drying towers)
• Procurement
• Monitoring of implementation
• Support trials
Key figures:
• 4 engines of 2000 kW Jenbacher J616
• Year: 1998
• steam boiler water tubes Leroux and Lotz
Mission:
• Feasibility study for batch thermal (steam generator, connection)
• Project study
• Change process (drying towers)
• Procurement
• Monitoring of implementation
• Support trials
Key figures:
• 4 engines of 2000 kW Jenbacher J616
• Year: 1998
• steam boiler water tubes Leroux and Lotz
CHP (Combined Heat and Power) - External
CHP (Combined Heat and Power) Cedec - Metz (57)
Owner: Soffimat
Mission:
• Feasibility study of CHP (Combined Heat and Power)
• Completion of administrative records
• Project study
• Change Process (Post combustion before atomizer)
• Procurement
• Monitoring of implementation
• Support trials
Key figures:
• 4 engines, 2 MW Jenbacher J616
• completion date: 1999
Owner: Soffimat
Mission:
• Feasibility study of CHP (Combined Heat and Power)
• Completion of administrative records
• Project study
• Change Process (Post combustion before atomizer)
• Procurement
• Monitoring of implementation
• Support trials
Key figures:
• 4 engines, 2 MW Jenbacher J616
• completion date: 1999

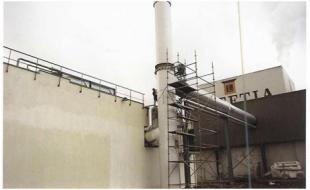

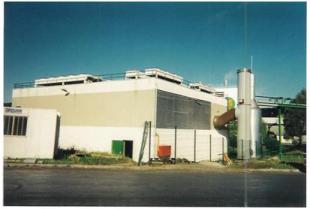

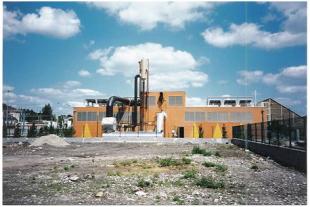

Exterior view of the plant - to process exhaust gas duct
CHP (Combined Heat and Power) Villa - Perpignan (66)
Owner: Soffimat
Mission:
• Feasibility study of CHP (Combined Heat and Power)
• Completion of administrative records
• Project study
• Injecting CO2 into greenhouses with exhaust gas cleaning
• Procurement
• Monitoring of implementation
• Support trials
Key figures:
• 2 engines of 2 MW Jenbacher J616
• completion date: 1999
CHP (Combined Heat and Power) Villa - Perpignan (66)
Owner: Soffimat
Mission:
• Feasibility study of CHP (Combined Heat and Power)
• Completion of administrative records
• Project study
• Injecting CO2 into greenhouses with exhaust gas cleaning
• Procurement
• Monitoring of implementation
• Support trials
Key figures:
• 2 engines of 2 MW Jenbacher J616
• completion date: 1999
CHP (Combined Heat and Power) Eurosérum - Vesoul (70)
Owner: Finergaz
Contractor: Wärtsilä
Mission:
• Feasibility study for batch thermal (steam generator, water connection and
steam)
• Project study
• Change process (drying towers)
• Procurement
• Monitoring of implementation
• Support trials
Key figures:
• 3 engines 2 x Wärtsilä 18V220 Gas (3MW) and 1 x 12V220 (2 MW)
• Year: 2000
• steam boiler flue tubes Stein Fasel
Owner: Finergaz
Contractor: Wärtsilä
Mission:
• Feasibility study for batch thermal (steam generator, water connection and
steam)
• Project study
• Change process (drying towers)
• Procurement
• Monitoring of implementation
• Support trials
Key figures:
• 3 engines 2 x Wärtsilä 18V220 Gas (3MW) and 1 x 12V220 (2 MW)
• Year: 2000
• steam boiler flue tubes Stein Fasel
Main references combined cycle - Turbine Steam:
CHP (Combined Heat and Power) Chantenay (44)
Owner: S.I.I.F.
Contractor: Wärtsilä
Mission:
• Study the feasibility of a combined cycle (steam generator, turbine, condenser, Lot
plumbing and electrical Lot)
• Study Cycle
• Consultation with providers
• Procurement
• Monitoring achievement
• Support trials
Key figures:
• 8 engines UD 30 1 MW
• Generator steam babcock Wanson 6 t / h
• Steam Turbine: GAF 6C Dresser Rand - 13b b.abs saturated to 0.2.
• Power steam turbine: 680 kilowatts
• completion date: 1995

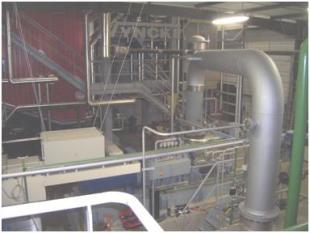

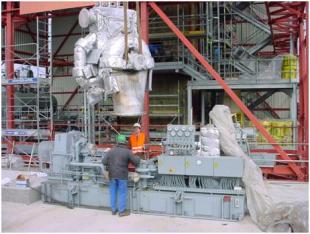

Overview with recovery steam generator and condenser
Central production of Jarry (Guadeloupe)
Owner: S.I.I.F.
General contractor for Lot turbo / condenser INTERPEC
Mission:
• Study the feasibility of a combined cycle (steam generator, turbine, condenser, Lot
plumbing and electrical Lot)
• Study Cycle
• Consultation with providers
• Procurement
• Monitoring achievement
Key figures:
• 4 engines 5 MW heavy fuel SEMT PIELSTICK
• Steam Turbine: Murray KB7 Series - 10b / 330 ° C to 0.3 b.abs.
• Power steam turbine: 1270 kilowatts
• completion date: 1998

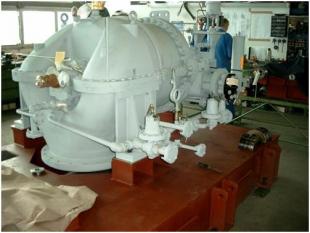

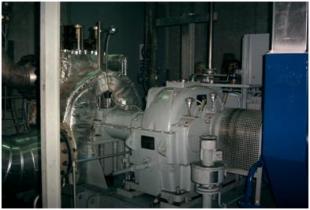

Condensing steam turbo alternarteur Group
CHP (Combined Heat and Power) Arnas (69)
Supervisor: ICE
General contractor for Lot turbo / condenser INTERPEC
Mission:
• Study the feasibility of a combined cycle (steam generator, turbine, condenser, Lot
plumbing and electrical Lot)
• Study Cycle
• Consultation with providers
• Procurement
• Monitoring achievement
• Support trials
Key figures:
• 8 engines UD 30 1 MW
• Steam Turbine: Coppus RLA24 - 16b / 350 ° C to 0.7 b.abs
• Power steam turbine: 520 kilowatts
• completion date: 1999
Supervisor: ICE
General contractor for Lot turbo / condenser INTERPEC
Mission:
• Study the feasibility of a combined cycle (steam generator, turbine, condenser, Lot
plumbing and electrical Lot)
• Study Cycle
• Consultation with providers
• Procurement
• Monitoring achievement
• Support trials
Key figures:
• 8 engines UD 30 1 MW
• Steam Turbine: Coppus RLA24 - 16b / 350 ° C to 0.7 b.abs
• Power steam turbine: 520 kilowatts
• completion date: 1999

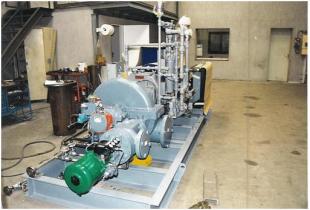

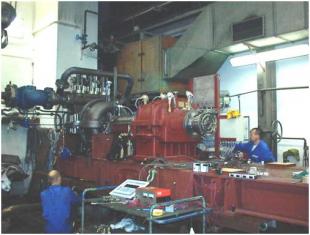

Turbo / generator
CHP (Combined Heat and Power) Pacy (27)
Supervisor: ICE
General contractor for Lot turbo / condenser INTERPEC
Mission:
• Study the feasibility of a combined cycle (steam generator, turbine, condenser, Lot
plumbing and electrical Lot)
• Study Cycle
• Consultation with providers
• Procurement
• Monitoring achievement
• Support trials
Key figures:
• 8 engines UD 30 1 MW
• Steam Turbine: Coppus RLA24 - 16b / 350 ° C to 0.7 b.abs
• Power steam turbine: 520 kilowatts
• completion date: 1999
Supervisor: ICE
General contractor for Lot turbo / condenser INTERPEC
Mission:
• Study the feasibility of a combined cycle (steam generator, turbine, condenser, Lot
plumbing and electrical Lot)
• Study Cycle
• Consultation with providers
• Procurement
• Monitoring achievement
• Support trials
Key figures:
• 8 engines UD 30 1 MW
• Steam Turbine: Coppus RLA24 - 16b / 350 ° C to 0.7 b.abs
• Power steam turbine: 520 kilowatts
• completion date: 1999
Steam condenser

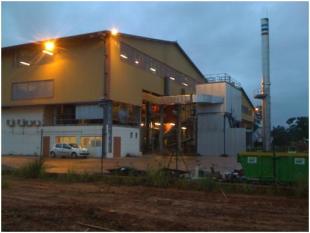

Production plant in Ghana
Owner: S.I.I.F.
General contractor for Lot turbo / condenser Interpec
Mission:
• Study the feasibility of a combined cycle (steam generator, turbine, condenser, Lot
plumbing and electrical Lot)
• Study Cycle
• Consultation with providers
• Procurement
• Monitoring achievement
• Support trials
Key figures:
• 6 engines 18V200 2 MW CW F.O.D.
• Steam Turbine: Tuthill Nadrowski C4SII - 16b / 270 ° C to 0.6 b.abs.
• Power steam turbine: 370 kilowatts
• completion date: 2000
Owner: S.I.I.F.
General contractor for Lot turbo / condenser Interpec
Mission:
• Study the feasibility of a combined cycle (steam generator, turbine, condenser, Lot
plumbing and electrical Lot)
• Study Cycle
• Consultation with providers
• Procurement
• Monitoring achievement
• Support trials
Key figures:
• 6 engines 18V200 2 MW CW F.O.D.
• Steam Turbine: Tuthill Nadrowski C4SII - 16b / 270 ° C to 0.6 b.abs.
• Power steam turbine: 370 kilowatts
• completion date: 2000

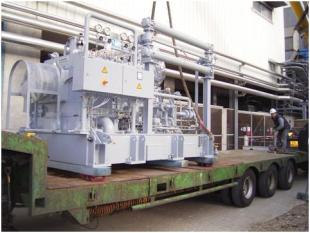

Skid condenser

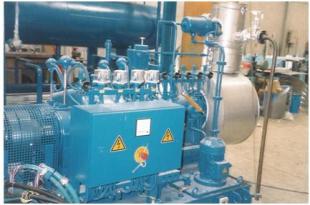

Steam turbine / gear
CHP (Combined Heat and Power) Rottersac - Lalinde (24)
Owner: Dalkia
General contractor for Lot turbo: Interpec
Mission:
• Monitoring implementation lot turbo
• Support batch trials urbo
Key figures:
• a gas turbine of 10 MW TURBOMACH
• a water tube boiler BONO with afterburner
• Steam Turbine: Tuthill Nadrowski B5S2 - 34b / 390 ° C at 5 b.eff.
• Power steam turbine: 1600 kilowatts
• completion date: 2001
Main references Biomass - Steam Turbine:

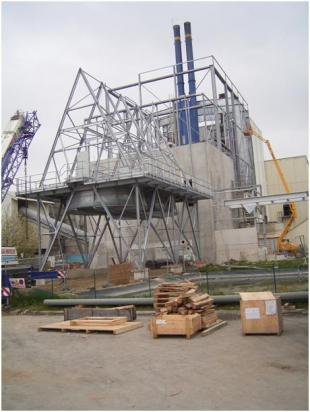

CHP (Combined Heat and Power) Felletin Wood (23)
Owner: S.C.E.F. - Gueret
Supervisor: A.B.P. - Clichy
General contractor for Lot turbo generator / condenser Interpec - Paris
Project: Boiler wood CHP (Combined Heat and Power) (heat + electricity)
Year: 2002/2003
Mission:
• Project study for lots steam turbine and condenser
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine Tuthill Nadrowski tandem
• Turbine 1: B5S5 45b/450 ° C to 3.5 b.abs.
• Turbine 2: B7SS3 b.abs 3.5 to 0.15 b.abs.
• steam condenser GEA
• Power: 3490 kilowatts
• Generator Alstom steam
• Year: 2002/2003
Owner: S.C.E.F. - Gueret
Supervisor: A.B.P. - Clichy
General contractor for Lot turbo generator / condenser Interpec - Paris
Project: Boiler wood CHP (Combined Heat and Power) (heat + electricity)
Year: 2002/2003
Mission:
• Project study for lots steam turbine and condenser
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine Tuthill Nadrowski tandem
• Turbine 1: B5S5 45b/450 ° C to 3.5 b.abs.
• Turbine 2: B7SS3 b.abs 3.5 to 0.15 b.abs.
• steam condenser GEA
• Power: 3490 kilowatts
• Generator Alstom steam
• Year: 2002/2003
Establishing low-pressure turbine
Candy the Galion (Martinique)
Client: Le Galion SAEM - Martinique
Contractor: Interpec - Paris
Project: Establishment of a steam turbine
Mission:
• Project study
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine Tuthill Nadrowski B5S4 b/340 20 ° C at 1 b.eff
• Power 2170 kilowatts
• Steam generator Babcock Wanson
• Year: 2001
Steam Turbine during assembly
Plant timber Dagris (Burkina Faso)
Owner: Dagris
Contractor: Interpec - Paris
Project: Replacing turbine / steam condenser
Mission:
• Project study for lots steam turbine and condenser
• Procurement
• Monitoring of implementation
Key figures:
• Steam Turbine Tuthill Murray KD7
• b/320 Relaxation of 26 ° C to 0.15 b.abs.
• steam condenser GEA
• Power: 2450 kilowatts
• Generator Steam MOCK
• Year: 2004
Owner: Dagris
Contractor: Interpec - Paris
Project: Replacing turbine / steam condenser
Mission:
• Project study for lots steam turbine and condenser
• Procurement
• Monitoring of implementation
Key figures:
• Steam Turbine Tuthill Murray KD7
• b/320 Relaxation of 26 ° C to 0.15 b.abs.
• steam condenser GEA
• Power: 2450 kilowatts
• Generator Steam MOCK
• Year: 2004
Turbine during assembly
CHP (Combined Heat and Power) wood Recybois (Belgium)
Owner: Recybois (Belgium)
General contractor for Lot turbo generator: Interpec - Paris
Project: Boiler wood CHP (Combined Heat and Power) (heat + electricity)
Mission:
• Project study for lots steam turbo
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine Tuthill Nadrowski tandem
• Turbine 1: B5S5 45b/450 ° C to 2 b.abs.
• Turbine 2: B7S2 2 b.abs b.abs to 0.15.
• Power: 3600 kilowatts
• Generator Steam HDS
• Year: 2004/2005
Owner: Recybois (Belgium)
General contractor for Lot turbo generator: Interpec - Paris
Project: Boiler wood CHP (Combined Heat and Power) (heat + electricity)
Mission:
• Project study for lots steam turbo
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine Tuthill Nadrowski tandem
• Turbine 1: B5S5 45b/450 ° C to 2 b.abs.
• Turbine 2: B7S2 2 b.abs b.abs to 0.15.
• Power: 3600 kilowatts
• Generator Steam HDS
• Year: 2004/2005

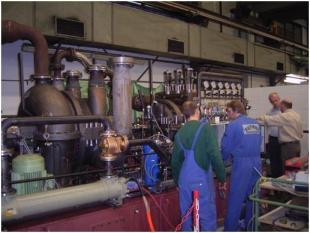

Turbine being tested
CHP (Combined Heat and Power) wood BIOBAR (Bar Sur Aube)
Client: RWE France
Project: Boiler wood CHP (Combined Heat and Power) (heat + electricity)
Consumer Thermal Cauval Industry (Ex Dumeste)
Mission: Project management for the entire Central
• Project study for all lots (turbo steam hot water ...)
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine Tuthill Nadrowski B5S6 28b/385 ° C at 0, 55 b.abs.
• Vyncke boiler steam grate cooled by water of 9 t / h
• Power: 1400 kilowatts
• Power Hot water: 6 MW
• network length: 6000 m
• Year: 2005
Photo of turbo
Steam and the thermal network
Steam Boiler-Electrical
Urbino alternator - Boiler
Electric Pipe-Network
Photo of the Central
Biomass plant in Kourou (French Guiana)
Owner: Voltalia
Project: Central biomass
Mission: Project management for the entire Central
• Project study for all lots (turbo steam-boiler Electrical Plumbing ...)
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine KET MM 615-7 - 28b/385 b.ab ° C to 0.2 s.
• Vyncke boiler steam grate cooled by water of 11 t / h
• Power: 2050 kilowatts
• Year: 2008/2009 - Ongoing
Owner: Voltalia
Project: Central biomass
Mission: Project management for the entire Central
• Project study for all lots (turbo steam-boiler Electrical Plumbing ...)
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine KET MM 615-7 - 28b/385 b.ab ° C to 0.2 s.
• Vyncke boiler steam grate cooled by water of 11 t / h
• Power: 2050 kilowatts
• Year: 2008/2009 - Ongoing
Photo of plant
Biomass CHP (Combined Heat and Power) in Gent (Belgium)
Owner: VCenergy
Project: Wood Boiler
This plant has the following characteristics:
• Unit digestion of cow manure and agricultural waste including:
o Digester;
o Gas engine GE Jenbacher the biogas plant with a capacity of 1 MW;
o recuperator hot water for heating digester output engine;
o Drying of compost from the digester with the energy output fatal steam turbine (see below).
• unit burning wood waste;
o wood boiler flue gas treatment
o Steam Turbine;
o alternator with a power 1.8 MW.
Mission: Project management for the entire unit burning wood
• Project study for all lots (turbo steam-boiler Electrical Plumbing ...)
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine KET MM 615-7 - 28b/385 ° C to 0.13 ba bs.
• Vyncke boiler steam grate cooled by water of 9 t / h
• Power Draw: 1800 kW
• Year: 2008 / 2009
Owner: VCenergy
Project: Wood Boiler
This plant has the following characteristics:
• Unit digestion of cow manure and agricultural waste including:
o Digester;
o Gas engine GE Jenbacher the biogas plant with a capacity of 1 MW;
o recuperator hot water for heating digester output engine;
o Drying of compost from the digester with the energy output fatal steam turbine (see below).
• unit burning wood waste;
o wood boiler flue gas treatment
o Steam Turbine;
o alternator with a power 1.8 MW.
Mission: Project management for the entire unit burning wood
• Project study for all lots (turbo steam-boiler Electrical Plumbing ...)
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine KET MM 615-7 - 28b/385 ° C to 0.13 ba bs.
• Vyncke boiler steam grate cooled by water of 9 t / h
• Power Draw: 1800 kW
• Year: 2008 / 2009

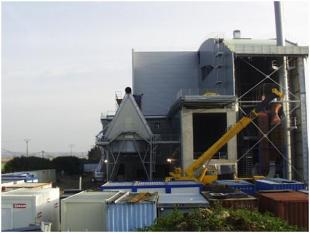

Boiler in progress
PCF plant biomass (Vesoul)
Owner: Voltalia
Project: Central biomass
Mission: Project management for the entire Central
• Project study for all lots (turbo steam-boiler Electrical Plumbing ...)
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• 7.2 MW steam turbine.
• 33 MW steam boiler
• Year: 2010 - Ongoing
Owner: Voltalia
Project: Central biomass
Mission: Project management for the entire Central
• Project study for all lots (turbo steam-boiler Electrical Plumbing ...)
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• 7.2 MW steam turbine.
• 33 MW steam boiler
• Year: 2010 - Ongoing
Photo of plant
Main references household waste incineration Steam
U.I.O.M. Brest (29)
Owner: Dalkia
General contractor for the lot turbo
Project: Establishment of a steam turbine
Mission:
• Project study
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine Tuthill Nadrowski B5S4 b/290 31 ° C to 4 b.eff
• Power 2980 kilowatts
• Four: Von Roll
• Year: 2001

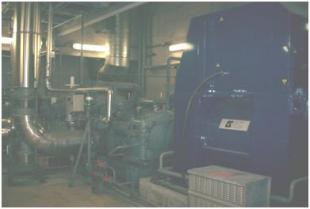

turbo / alternator

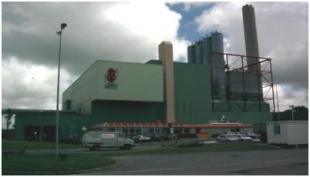

Overview - Factory
- Turbine
U.I.O.M. Nevers (58)
Owner: Onyx
Lots: Turbo steam, electricity and plumbing
Contractor: Interpec
Mission:
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine Tuthill Nadrowski B7S5 b/350 36 ° C to 0.15 b.abs
• Power 3200 kilowatts
• Four Babcock Volund
• Year: 2002
Owner: Onyx
Lots: Turbo steam, electricity and plumbing
Contractor: Interpec
Mission:
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine Tuthill Nadrowski B7S5 b/350 36 ° C to 0.15 b.abs
• Power 3200 kilowatts
• Four Babcock Volund
• Year: 2002
Photo factory with the condenser
U.I.O.M. Concarneau (29)
Owner: SITCOM Concarneau
Lots: Turbo steam and condenser électricté.
Contractor: Interpec
Mission:
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine Tuthill Nadrowski B7S4 - 22 b to 0.15 saturated b.abs
• Power 2950 kilowatts
• Four: Von Roll
• Year: 2006

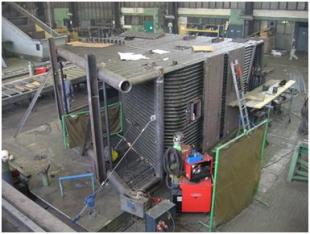

Steam condenser being assembled
Main references cons pressure turbine
Arjo Wiggins paper mill (72)
Owner: Dalkia Cofathec
General contractor for Lot turbo: Interpec
Project: Establishment of a steam turbine
Mission:
• Project study
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine Tuthill Nadrowski B5S4 b/420 44 ° C to 4.5 b.eff
• Power 4200 kilowatts
• Year: 2004/2005
Arjo Wiggins paper mill (72)
Owner: Dalkia Cofathec
General contractor for Lot turbo: Interpec
Project: Establishment of a steam turbine
Mission:
• Project study
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Steam Turbine Tuthill Nadrowski B5S4 b/420 44 ° C to 4.5 b.eff
• Power 4200 kilowatts
• Year: 2004/2005
Turbo alternator
Main references Biomass - Boiler room:
Biomass plant Bellows (51)
Owner: Bellows
Project: Wood Boiler
Year: 2010
Mission: Control of work on lots boilers and mechanical
• Project study
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Generator 6 MW hot water
• Year completed: 2010 current
Biomass plant Bellows (51)
Owner: Bellows
Project: Wood Boiler
Year: 2010
Mission: Control of work on lots boilers and mechanical
• Project study
• Procurement
• Monitoring of implementation
• Test Pilot
Key figures:
• Generator 6 MW hot water
• Year completed: 2010 current
